Nano Stick-S（ナノスティック）

UV-Vis用ウルトラマイクロセル

ナノ

SCINCO 社製のNano Stick-Sは、紫外可視分光光度計用のウルトラマイクロセルです。

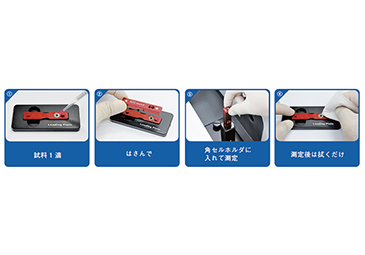

0.5 mm の光路長で、必要な試料量はわずか2 µL です。サンプリングポートに試料を1 滴滴下するだけで、簡単に測定することができます。

光路長 0.5 mm
大きさ 12.5 x 12.5 x 60 mm (WDH)
光軸高さ 15 mm
最小試料量 2 µL
ホルダ材質 アルミ
サンプルポート材質 石英
使用可能波長範囲 190～1100 nm

特長
